JNCIE-SEC Lab Master Plan

Objective

This lab is designed to support intensive hands-on preparation for the Juniper Networks Certified Internet Expert – Security (JNCIE-SEC) certification. It simulates enterprise-grade secure network deployments using real Juniper hardware with current Junos firmware.

Lab Equipment Inventory

Firmware Versions (JUNOS)

All devices must be upgraded to the listed versions before beginning configuration.

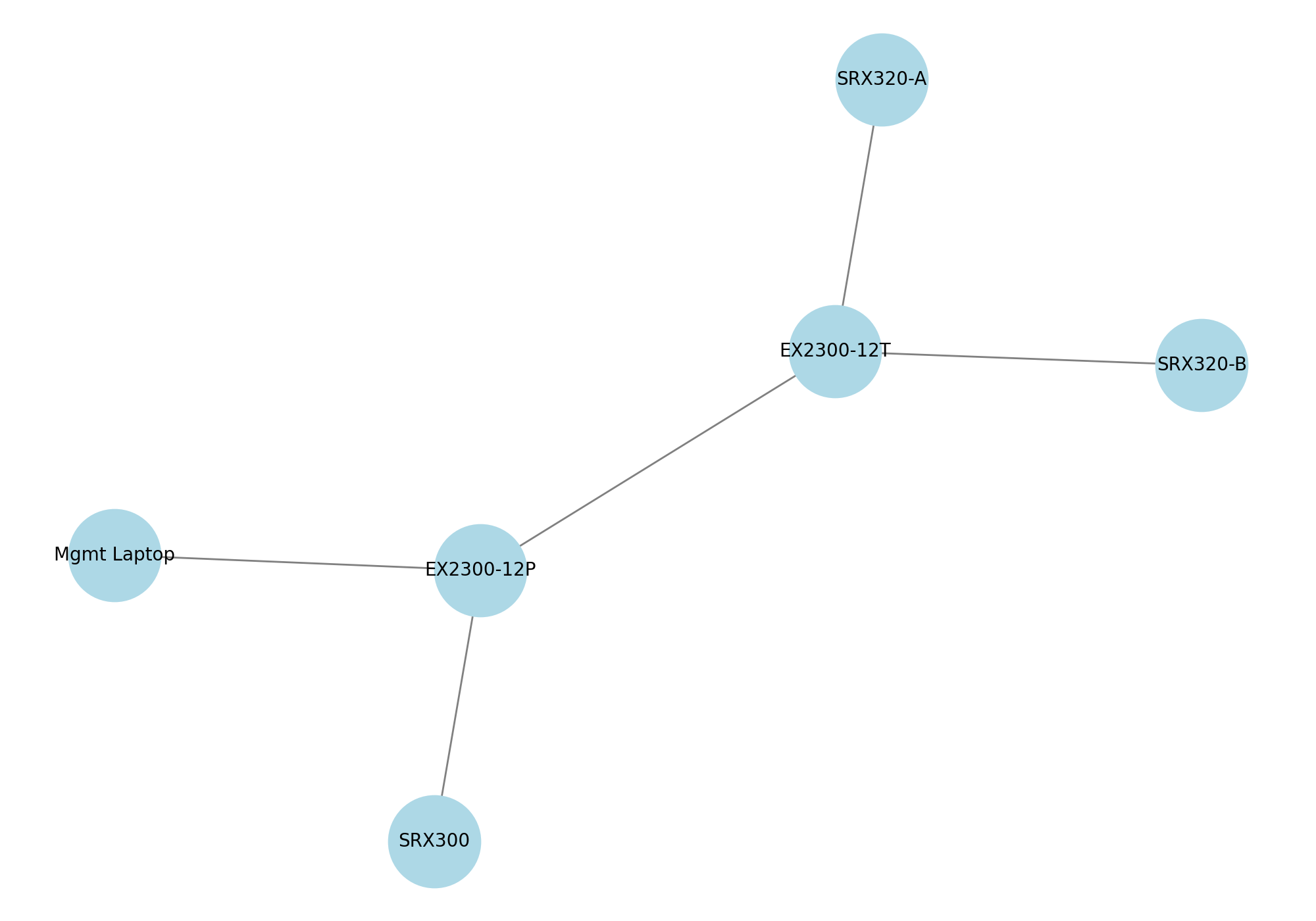

Physical Lab Topology

+-----------+          +-----------+          +-----------+
| SRX320-A  | <------> | EX2300-12T| <------> | SRX320-B  |
+-----------+          +-----------+          +-----------+
       |                     |                     |
       |                     |                     |
+-------------+       +-------------+       +-------------+
| Mgmt Laptop |       | EX2300-12P  |       |   SRX300    |
+-------------+       +-------------+       +-------------+

All devices are interconnected via the EX switches. Management is provided through the EX2300-12P using out-of-band access. This topology supports zones, VPNs, NAT, IDP, UTM, and routing protocols.

Cabling Plan (Interfaces)

All interfaces will be manually configured. Zero Touch Provisioning (ZTP) and DHCP are not used.

Logical Lab Design

The following logical elements are implemented:

• Zones: Trust / Untrust / DMZ / VPN / Management
• Services: IPSec VPN, NAT, IDP, AppSecure, UTM
• Routing: OSPF, static routes, redundancy with RETH
• Policy: ALGs, security policies, zone-based firewalling
• High Availability: Chassis cluster (SRX320-A and SRX320-B)
• Management: Out-of-band via EX2300-12P (accessible from laptop)

Configuration Structure

Configuration files will be organized in the following directories:

• base-configs/: Initial zeroed configurations
• system-configs/: Hostname, users, time, DNS, services
• interface-configs/: Physical and logical interfaces
• security-configs/: Zones, policies, address books
• vpn-configs/: Site-to-site and remote access VPN
• services-configs/: IDP, UTM, AppSecure
• routing-configs/: Static, OSPF, ECMP, BFD
• cluster-configs/: Chassis clustering (SRX320 pair)

Lab Execution Plan

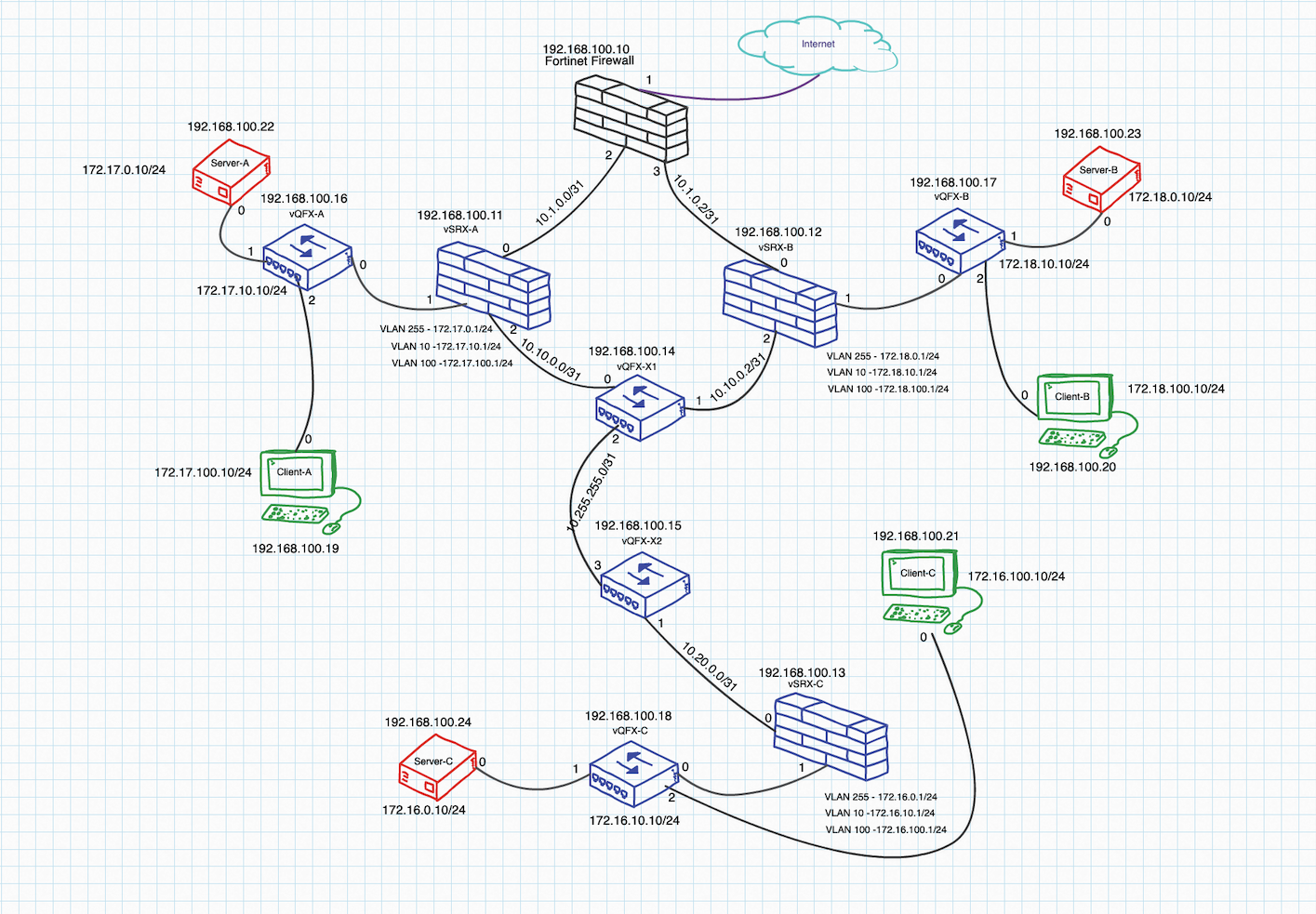

Topology

Basic Configs

root / Juniper123

carrot / Juniper123

SRX320-A

set system host-name SRX320-A
set system root-authentication encrypted-password "$5$YjO8ZGdi$Dxb3Gufp7V/JrYcKwx5Vi7bAN1R/BXVG/RDskzyPFr7"
set system login user carrot full-name Carrot
set system login user carrot uid 2002
set system login user carrot class super-user
set system login user carrot authentication encrypted-password "$5$tZgvxpAy$qW2cx2fj6IsOpwK2VqgaHa71SgYa/bETx0ioNnpBEy6"
set system services ssh
set system services web-management https system-generated-certificate
set system time-zone UTC
set system name-server 1.1.1.1
set system name-server 9.9.9.9
set security policies from-zone trust to-zone untrust policy trust-to-untrust match source-address any
set security policies from-zone trust to-zone untrust policy trust-to-untrust match destination-address any
set security policies from-zone trust to-zone untrust policy trust-to-untrust match application any
set security policies from-zone trust to-zone untrust policy trust-to-untrust then permit
set security zones security-zone trust interfaces ge-0/0/1.0
set security zones security-zone untrust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 description WAN-Uplink
set interfaces ge-0/0/0 unit 0 family inet address 192.168.255.170/24
set interfaces ge-0/0/1 description "Trust zone to EX2300-12T"
set interfaces ge-0/0/1 unit 0 family inet address 10.0.10.1/24
set routing-options static route 0.0.0.0/0 next-hop 192.168.255.250

SRX320-B

set system host-name SRX320-B
set system root-authentication encrypted-password "$5$YjO8ZGdi$Dxb3Gufp7V/JrYcKwx5Vi7bAN1R/BXVG/RDskzyPFr7"
set system login user carrot full-name Carrot
set system login user carrot uid 2002
set system login user carrot class super-user
set system login user carrot authentication encrypted-password "$5$tZgvxpAy$qW2cx2fj6IsOpwK2VqgaHa71SgYa/bETx0ioNnpBEy6"
set system services ssh
set system time-zone UTC
set system name-server 1.1.1.1
set system name-server 9.9.9.9
set security zones security-zone trust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 description "Trust zone to EX2300-12T"
set interfaces ge-0/0/0 unit 0 family inet address 10.0.20.1/24
set routing-options static route 0.0.0.0/0 next-hop 10.0.10.1

SRX300

set system host-name SRX300
set system root-authentication encrypted-password "$5$YjO8ZGdi$Dxb3Gufp7V/JrYcKwx5Vi7bAN1R/BXVG/RDskzyPFr7"
set system login user carrot full-name Carrot
set system login user carrot uid 2002
set system login user carrot class super-user
set system login user carrot authentication encrypted-password "$5$tZgvxpAy$qW2cx2fj6IsOpwK2VqgaHa71SgYa/bETx0ioNnpBEy6"
set system services ssh
set system time-zone UTC
set system name-server 1.1.1.1
set system name-server 9.9.9.9
set security zones security-zone untrust interfaces ge-0/0/0.0
set interfaces ge-0/0/0 unit 0 description "Internal LAN to EX2300-12P"
set interfaces ge-0/0/0 unit 0 family inet address 10.0.30.1/24
set routing-options static route 0.0.0.0/0 next-hop 10.0.20.1
